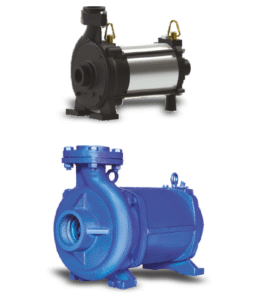

Features:

• All components are precisely machined on modern precision machine tools to give you years of reliable operation.
• Pumpset are designed to withstand voltage drops to 320 volts.
• It has well designed sleeve and thrust bearing of adequate capacity for longer life.
• High operating efficiencies of pumpset result into high water discharge rate and lower power bills.
• All rotating components are dynamically balanced to ensure long bearing life and vibration free smooth operation.
• Stator and rotor of the monoset are vacuum impregnated with synthetic varnish and epoxy coated for corrosion resistance.
• All pumpsets are fully tested prior to despatch.

Applications:

• Irrigation from open wells especially where there is wide fluctuation in water levels
• Community water supply from open wells
• Canals / Rivers belt irrigation
• Water supply for high-rise building
• Fountains

Material of Construction

• Motor Body : Cast Iron / Stainless Steel
• Stator : Vacuum Impregnated and epoxy coated for corrosion resistance. Thick end laminations are provided to protect motor windings.
• Rotor : Vacuum impregnated, shot blasted & coated with poly urethene colour for corrosion resistance & dynamically balanced for vibration free smooth operation.
• Winding : BOPP coated copper.
• Thrust Bearings : Carbon Vs Stainless Steel and water lubricated to withstand high axial thrust loads.
• Pressure Equalizing Diaphragm : Adequately sized to accommodate expansion of water inside th motor and prevent loss cooling water
• Impeller : High grade Noryl / Cast iron & Dynamically balanced.
• Casing : High grade Cast Iron.
• Shaft : Stainless Steel of adequate diameter to ensure rigidity and ground to close tolerances.
• Cable Sealing Arrangement : Designed so that no borewell water with sand can enter the motor.
• Bush : LTB4/ Carbon

Performance chart for SSM Series Pump at 230 Volt – 1PH / 415 Volt – 3PH, 50 Hz AC Supply

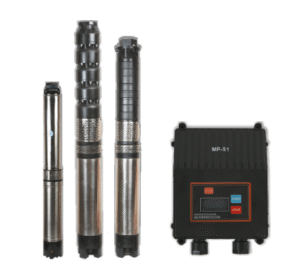

Smart Submersible :

This pump is specially designed to suite your Fast life style. Now, no need to be at home to start and stop the pump. Your pump will give you SMS alerts about Start/ Stop / Pump failure etc.

Smart Features:

First level of Artificial Intelligence designed to monitor the pump health Automatically Starts and stops the pump depending on the water requirement.

Dry Run protection : Pump will stop working if no water in Well/Tank.

Protection : High / Low Voltage & Over load, with Display alert.

Auto Mode : Pump Starts when water refilled in Well or Tank.

Option : Mobile operated Pump, with Mobile SIM Card.

• Get real time report on
• SMS alert of start/ stop /
• You can lock the pump — 0nIy authorized person can operate.

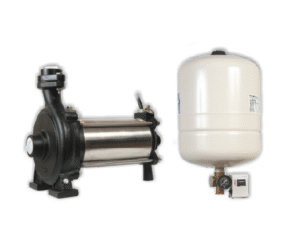

Scuba Press / Scuba Boost

S¢uba pump is our scuba diver. It will remain under the water 24×7 so that you get water anytime you want. S¢uba Press is Auto start system, Scuba Boost will have extra strong pressure tank,

Smart Features:

• Scuba system is fitted in underground tank, thus save
• Very Silent operation and smooth
• It can Give Pressurized water & also fill over head
• No worry of dry running, Extended pump
• Extra Powerful and Energy
• Scuba press can be used to fill overhead tank
• Scuba Press is fitted with Auto Press to start pump
• Scuba boost is offered with Pressure

Scuba Press

Scuba Boost

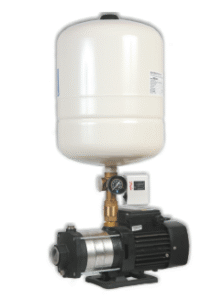

Multi Boost

Multi Boost specially designed for multiple utility services. You can comfortablly

use Multiple taps & utility machines at same time. Specially designed for Big house, Vila, Banglow, Small Apartments etc.

Smart Features:

• Supplied with world class American Tank from Global* water
• All imported Brass Fitting and Pressure switch from Danfoss* group – Denmark.
• Use Shower Panel, Washroom, Kitchen at same
• Wash your Car like professional
• Feed the R0 plant, Garden sprinkler, Washing machine.
• Suitable for 1 to 16 bathrooms (8 x 2 BHK).

Specification :

• Water temperature : 5 to 60°C
• Ambient temp : 50°C
• Maximum pressure : 10 bar
• Non Self Priming Pump

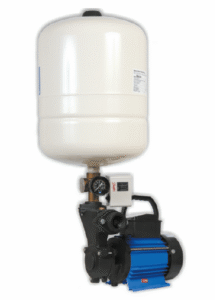

Eco Boost

EC0 Boost well designed for small house/ Villa. Compact in size and affordable

in price, this is for single family use.

Smart Features:

• Supplied with world class American Tank from Global* water
• All imported Brass Fitting and Pressure switch from Danfoss* group
• Suitable for 1, 2 or 3 BHK house

Specification :

• Water temperature : Sto 50oC
• Ambient temp : 50oC
• Maximum pressure : 3 bar
• Self Priming Pump

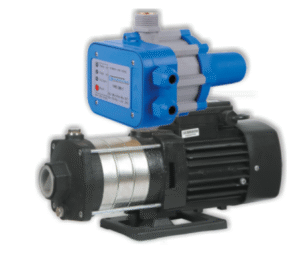

Multi Press

If you have 2 or 3 floor house and need an affordable solution, this is the best

¢hoice of pumps.

Smart Features:

• Multi Stage 100% Stainless steel Impeller &
• Rust Free coating on all Wet
• Boosting pressure from 5 to 4 bar
• Can deliver water up to 4 BHK or up to 2-3 floor

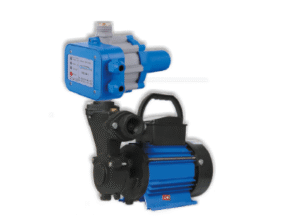

Eco Press

EC0 PRESS, is carefully designed for 1BHK & 2BHK houses who wants luxury in a value pack. This is a smart pump, which starts and stops at your finger tips. The pump will only work when you open the tap and stop when you close the tap.

Smart Features:

• Eco Press will only use electricity with you operate
• Gives sufficient pressure in tap/shower/utility
• Easy to mount on your Bathroom loft or small
• Silently working pump will save energy & 24×7
• Protect pump from No-Water, Low Water
• Voltage : 180 —230V, 50Hz Temp 40°C
  • Eco Press 500 25-30 LPM at 1 bar – 2BHK — G+2 floor
  • Eco Press 1000 40-50 LPM at 5 bar – 2-4 BHK — G+2 floor

Features:

• High performance as compared to conventional Centrifugal and Mini monoset pumps
• Total suction head (with foot valve)
• Noryl Impeller (High Grade Plastic)
• Fitted with Thermal Overload Protector (T.0.P)

Technical Specification:

• Power rating : 37 kW & 0.75 kW (0.5 HP & 1.0 HP)
• Voltage range : 180 – 240 V
• Speed : 2850 rpm
• Direction of rotation : Clockwise from the driving end
• Class of insulation : B
• Head : 3 – 33 mtrs
• Capacity : Upto 4080 Iph
• Liquid : Clear cold water

Material of Construction:

• Impeller : Noryl
• Motor Body : Extruded Aluminum / Die Cast Body
• Delivery Casing, Adapter : Cast Iron
• Mechanical Seal : Ceramic / Carbon
• Shaft : Stainless Steel

Applications:

• Residential Bungalows
• Apartments
• Small Irrigation
• Small Hotels
• Lawns & Gardens
• Car Washing
• Fountains
• Pressure Boosting

Performance chart for SSW Series at 220 Volt, 1PH, 50 Hz AC Supply

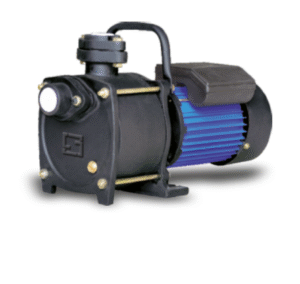

Features:

• Suction/Delivery Chamber, Adapter, Endshields are made of close grained cast iron of high tensile
• ss Casting and Brass impeller – No corrosion
• Totally Enclosed Fan Cooled (TEFC) construction resists dust,
• High quality and long life mechanical seal
• Self Priming upto 0 metres at mean sea level
• Fitted with Thermal Overload Protector (TOP).
• Double Shielded pre-lubricated anti-friction ball bearings are fitted at both ends to withstand radial and axial loads.
• Aluminium Extruded / Die Cast Motor Body for better heat dissipation and Corrosion resistant

Technical Specification

• Power rating : 37 kW to 0.75 kW (0.5 HP to 1.0 HP)
• Voltage range : 180 – 240 V
• Speed : 2850 rpm
• Direction of rotation : Clockwise from the driving end
• Class of insulation : B
• Head : 3 – 36 mtrs
• Capacity : Upto 3300 Iph
• Liquid : Clear cold water

Material of Construction

• Impeller : Brass
• Motor Body : Extruded Aluminum / Die Cast Body
• Suc./Del. Chamber, Adapter : Cast Iron
• Suc./Del. Casing : Stainless Steel
• Mechanical Seal : Carbon / Ceramic
• Shaft : Stainless Steel

Applications

• Residential bungalows, flats, laundries, clubs
• Booster applications
• Car washing
• Ornamental fountains
• Water circulation in solar heater systems

Performance chart for SDM Series Pump at 220 Volt, 1PH, 50 Hz AC Supply

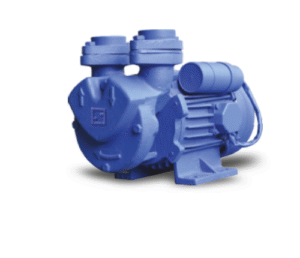

Features:

• Pump casing, Adapter, Endshields are made of close grained cast iron of high tensile strength.

• Double Shielded pre-lubricated anti-friction ball bearings are fitted at both ends to withstand radial and axial loads.

• Fitted with Thermal Overload Protector (TOP).

• Self Priming up to 8.0 metres at mean sea level

• Top mounted terminal box with covered capacitors.

• High Tensile Brass Impeller is used to give trouble free service.

• Superior Mechanical Seal for longer life and effective sealing against water leakage.

Technical Specification

• Power rating: 0.37 kW to 0.75 kW (0.5 HP to 1.0 HP)

• Voltage range: 180 – 240 V

• Speed: 1440 / 2850 rpm

• Direction of rotation: Clockwise from the driving end

• Class of insulation: B

• Head: 3 – 36 mtrs

• Capacity: Upto 2850 lph

• Liquid: Clear cold water

Material of Construction

• Impeller: HTB (High Tensile Brass)

• Motor Body: Sheet Metal / Cast Iron

• Delivery Casing, Adapter: Cast Iron

• Mechanical Seal: Carbon / Ceramic

• Shaft: Stainless Steel

Applications

• Water supply for residential bungalows, garages, apartments & flats, dairies, hotels, laundries, clubs, hospitals etc.

• Small farms, farm houses

• Water circulation in solar heater systems

• Small fountains, lawn sprinklers, gardens

• Booster applications

Features:

• Pump casing, Adapter, Endshields are made of close grained cast iron of high tensile strength.
• Forged Brass Impeller is used to give trouble free service.
• Self Priming upto 8.0 metres at mean sea level
• Aluminium Extruded Motor Body for better heat dissipation and Corrosion resistant.
• High quality and long life mechanical seal.
• Fitted with Thermal Overload Protector (TOP)
• Totally Enclosed Fan Cooled (TEFC) construction resists dust, moisture.
• Double Shielded pre-lubricated anti-friction ball bearings are fitted at both ends to withstand radial and axial loads.

Technical Specification

• Power rating: 0.37 kW to 0.75 kW (0.5 HP to 1.0 HP)
• Voltage range: 180 – 240 V
• Speed: 2850 rpm
• Direction of rotation: Clockwise from the driving end
• Class of insulation: B
• Head: 3 – 36 mtrs
• Capacity: Upto 3300 lph
• Liquid: Clear cold water

Material of Construction

• Impeller: Forged Brass
• Motor Body: Extruded Aluminum Body
• Delivery Casing, Adapter: Cast Iron
• Mechanical Seal: Carbon / Ceramic
• Shaft: Stainless Steel

Applications

• Water Supply to residential bungalows, garages, flats, laundries, clubs
• RO / water treatment plants
• Water circulation in solar heater systems
• Gardening and lawn sprinklers
• Booster applications
