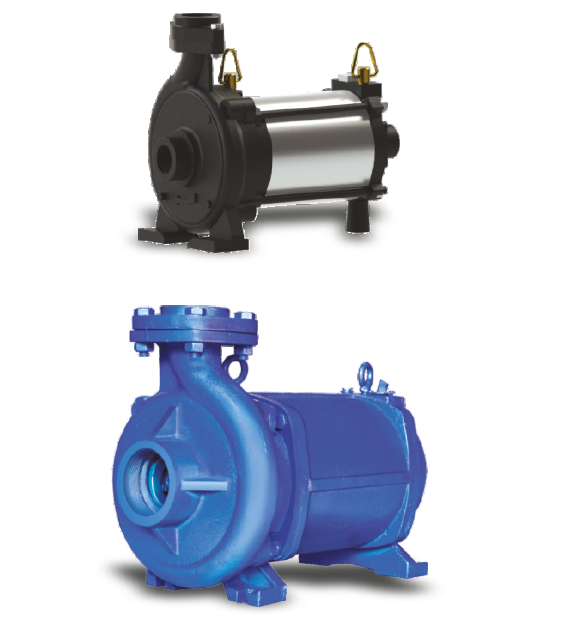

Openwell Submersible Pumpsets

Features:

• All components are precisely machined on modern precision machine tools to give you years of reliable operation.
• Pumpset are designed to withstand voltage drops to 320 volts.
• It has well designed sleeve and thrust bearing of adequate capacity for longer life.
• High operating efficiencies of pumpset result into high water discharge rate and lower power bills.
• All rotating components are dynamically balanced to ensure long bearing life and vibration free smooth operation.
• Stator and rotor of the monoset are vacuum impregnated with synthetic varnish and epoxy coated for corrosion resistance.
• All pumpsets are fully tested prior to despatch.

Applications:

• Irrigation from open wells especially where there is wide fluctuation in water levels
• Community water supply from open wells
• Canals / Rivers belt irrigation
• Water supply for high-rise building
• Fountains

Material of Construction

• Motor Body : Cast Iron / Stainless Steel
• Stator : Vacuum Impregnated and epoxy coated for corrosion resistance. Thick end laminations are provided to protect motor windings.
• Rotor : Vacuum impregnated, shot blasted & coated with poly urethene colour for corrosion resistance & dynamically balanced for vibration free smooth operation.
• Winding : BOPP coated copper.
• Thrust Bearings : Carbon Vs Stainless Steel and water lubricated to withstand high axial thrust loads.
• Pressure Equalizing Diaphragm : Adequately sized to accommodate expansion of water inside th motor and prevent loss cooling water
• Impeller : High grade Noryl / Cast iron & Dynamically balanced.
• Casing : High grade Cast Iron.
• Shaft : Stainless Steel of adequate diameter to ensure rigidity and ground to close tolerances.
• Cable Sealing Arrangement : Designed so that no borewell water with sand can enter the motor.
• Bush : LTB4/ Carbon

  Performance chart for SSM Series Pump at 230 Volt - 1PH / 415 Volt - 3PH, 50 Hz AC Supply

Model	HP	Size in mm	Head in Mtrs
			6	8	10	12	14	16	18	20	22	24	26	28	30	32	34	36	38	40	42	44	46	48	50	52
			Discharge in LPM
SSG-051*	0.5	25 x 25	186	166	152	149	122	101	74	35
SSG-101*	1.0	25 x 25	205	195	185	170	160	145	135	120	90	65	45
SSC-102	1.0	32 x 25		205	200	190	180	170	160	145	134	120	95	75	50
SSH-152	1.5	32 x 25	240	235	230	225	220	215	210	200	195	187	175	160	140	120	100	80	60
SSK-152	1.5	32 x 32	245	240	235	230	225	220	215	210	200	190	185	175	162	150	135	120	105	85	65
550-153	1.5	40 x 40				344	321	298	272	249	213	176	143
SSL-155	1.5	50 x 50	600	540	500	450	300	200
SSJ-204*	2.0	50 x 40	420	410	400	380	365	345	325	300	270	245	225	180	120
SSQ-205	2.0	50 x 50	575	550	525	480	440	400	360	285	150
550-306	3.0	65 x 50						500	465	415	390	360	320	275	230	150
SC0-306*	3.0	65 x 50	680	660	640	600	580	560	535	510	475	440	390	350	280
SC0-307	3.0	65 x 65		952	889	818	735	644	507
SC0-506*	5.0	65 x 50				678	668	658	648	637	596	581	535	493	463	411	365	308
SC0-507*	5.0	65 x 65					945	935	832	744	589	470
SC0-756	7.5	65 x 50	775	770	765	760	755	745	735	725	710	696	675	655	630	610	582	550	520	490	456	420	390	360	300	222
