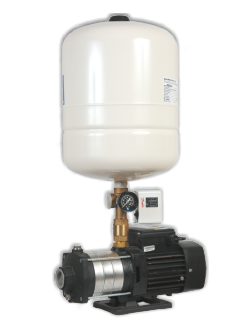

Pressure Boosting System MB Series

Multi Boost

Multi Boost specially designed for multiple utility services. You can comfortablly use Multiple taps & utility machines at same time. Specially designed for Big house, Vila, Banglow, Small Apartments etc.

Smart Features:

• Supplied with world class American Tank from Global* water
• All imported Brass Fitting and Pressure switch from Danfoss* group - Denmark.
• Use Shower Panel, Washroom, Kitchen at same
• Wash your Car like professional
• Feed the R0 plant, Garden sprinkler, Washing machine.
• Suitable for 1 to 16 bathrooms (8 x 2 BHK).



Specification :

• Water temperature : 5 to 60°C
• Ambient temp : 50°C
• Maximum pressure : 10 bar
• Non Self Priming Pump



Model	HP	Suc. x Del.	Discharge in LPH						Approx Suitability	Type of System	Tank Capacity (Litres)
			1000	1500	2000	2500	3000	3500
			Head in Mtrs
MB2-40	0.75	25x25	35	32	28	26	23	17	2Bathroom	Inline	24
MB2-50	1.0	25x25	43	40	35	33	28	22	2Bathroom	Inline	24
MB2-50	1.0	25x25	43	40	35	33	28	22	3Bathroom	Inline	35
MB2-60	1.0	25x25	50	48	42	38	32	25	4Bathroom	Vertical	60



Model	HP	Suc. x Del.	Discharge in LPH						Approx Suitability	Type of System	Tank Capacity (Litres)
			2000	3000	4000	5000	6000	7000
			Head in Mtrs
MB4-30	0.75	32x25	24	25	22	19	15	10	3Bathroom	Inline	24
MB4-40	1.0	32x25	36	33	30	26	20	14	4Bathroom	Inline	24
MB4-50	1.25	32x25	44	41	38	32	26	20	5Bathroom	Vertical	60
MB4-60	1.5	32x25	53	50	45	40	33	24	6Bathroom	Vertical	80
