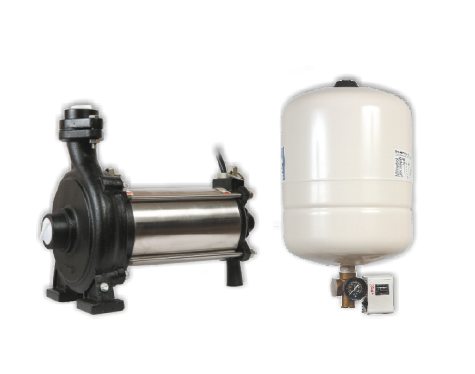

Pressure Boosting System SP/SB Series

Scuba Press / Scuba Boost

S¢uba pump is our scuba diver. It will remain under the water 24x7 so that you get water anytime you want. S¢uba Press is Auto start system, Scuba Boost will have extra strong pressure tank,

Smart Features:

• Scuba system is fitted in underground tank, thus save
• Very Silent operation and smooth
• It can Give Pressurized water & also fill over head
• No worry of dry running, Extended pump
• Extra Powerful and Energy
• Scuba press can be used to fill overhead tank
• Scuba Press is fitted with Auto Press to start pump
• Scuba boost is offered with Pressure

  Scuba Press

Model	HP	Suc. x Del.	Discharge in LPH						Approx Suitability	Type of System
			14	16	18	20	22	24
			Head in Mtrs
SP50	0.5		100	75	50				1 - 2 BHK	Ecopress
SP 100	1.0		170	160	150	130	120	100	2 - 4 BHK	Ecopress

Scuba Boost

Model	HP	Suc. x Del.	Discharge in LPH						Approx Suitability	Type of System	Tank Capacity (Litres)
			16	18	20	22	24	26
			Head in Mtrs
SB100A	1.0	32x25	160	150	130	120	95		4BHKViIIa	Inline	24
SB100B	1.0	32x25	160	150	130	120	95		4BHKViIIa	Vertical	35
SB100C	1.0	32x25	160	150	130	120	95		8BHKViIIa	Vertical	60
SB150	1.5	40x40	300	275	250	210	180		10BHKViIIa	Vertical	80
SB200	2.0	50x50	375	350	310	280	250	200	12BHKViIIa	Vertical	100
SB300	3.0	65x50	535	510	475	450	420	400	16BHKViIIa	Vertical	150
