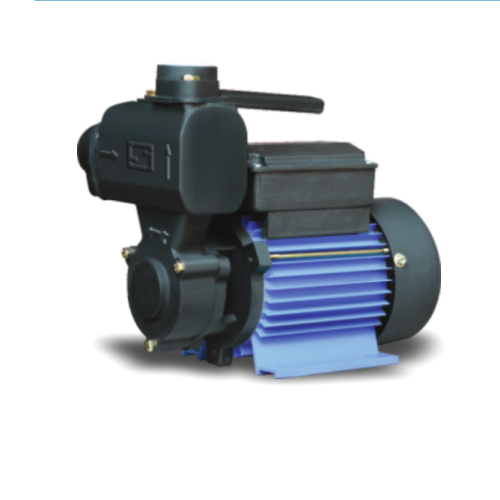

Self Priming Mini Pumps

Features:

• Pump casing, Adapter, Endshields are made of close grained cast iron of high tensile strength.
• Forged Brass Impeller is used to give trouble free service.
• Self Priming upto 8.0 metres at mean sea level
• Aluminium Extruded Motor Body for better heat dissipation and Corrosion resistant.
• High quality and long life mechanical seal.
• Fitted with Thermal Overload Protector (TOP)
• Totally Enclosed Fan Cooled (TEFC) construction resists dust, moisture.
• Double Shielded pre-lubricated anti-friction ball bearings are fitted at both ends to withstand radial and axial loads.

Technical Specification

• Power rating: 0.37 kW to 0.75 kW (0.5 HP to 1.0 HP)
• Voltage range: 180 – 240 V
• Speed: 2850 rpm
• Direction of rotation: Clockwise from the driving end
• Class of insulation: B
• Head: 3 – 36 mtrs
• Capacity: Upto 3300 lph
• Liquid: Clear cold water

Material of Construction

• Impeller: Forged Brass
• Motor Body: Extruded Aluminum Body
• Delivery Casing, Adapter: Cast Iron
• Mechanical Seal: Carbon / Ceramic
• Shaft: Stainless Steel

Applications

• Water Supply to residential bungalows, garages, flats, laundries, clubs
• RO / water treatment plants
• Water circulation in solar heater systems
• Gardening and lawn sprinklers
• Booster applications
