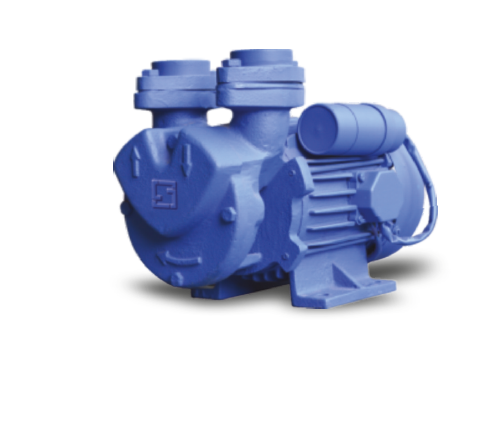

Self Priming Monoblock Pumps

Features:

• Pump casing, Adapter, Endshields are made of close grained cast iron of high tensile strength.

• Double Shielded pre-lubricated anti-friction ball bearings are fitted at both ends to withstand radial and axial loads.

• Fitted with Thermal Overload Protector (TOP).

• Self Priming up to 8.0 metres at mean sea level

• Top mounted terminal box with covered capacitors.

• High Tensile Brass Impeller is used to give trouble free service.

• Superior Mechanical Seal for longer life and effective sealing against water leakage.

Technical Specification

• Power rating: 0.37 kW to 0.75 kW (0.5 HP to 1.0 HP)

• Voltage range: 180 - 240 V

• Speed: 1440 / 2850 rpm

• Direction of rotation: Clockwise from the driving end

• Class of insulation: B

• Head: 3 - 36 mtrs

• Capacity: Upto 2850 lph

• Liquid: Clear cold water

Material of Construction

• Impeller: HTB (High Tensile Brass)

• Motor Body: Sheet Metal / Cast Iron

• Delivery Casing, Adapter: Cast Iron

• Mechanical Seal: Carbon / Ceramic

• Shaft: Stainless Steel

Applications

• Water supply for residential bungalows, garages, apartments & flats, dairies, hotels, laundries, clubs, hospitals etc.

• Small farms, farm houses

• Water circulation in solar heater systems

• Small fountains, lawn sprinklers, gardens

• Booster applications
