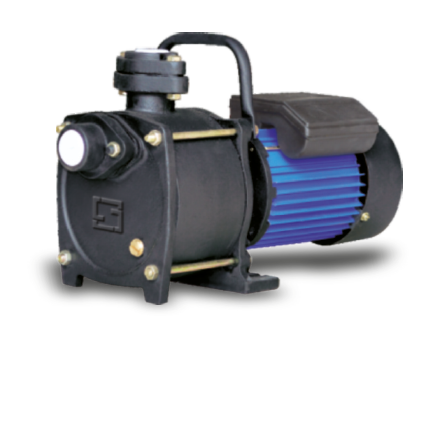

Shallow Wel Jet Pumps

Features:

• High performance as compared to conventional Centrifugal and Mini monoset pumps
• Total suction head (with foot valve)
• Noryl Impeller (High Grade Plastic)
• Fitted with Thermal Overload Protector (T.0.P)



Technical Specification:

• Power rating : 37 kW & 0.75 kW (0.5 HP & 1.0 HP)
• Voltage range : 180 - 240 V
• Speed : 2850 rpm
• Direction of rotation : Clockwise from the driving end
• Class of insulation : B
• Head : 3 - 33 mtrs
• Capacity : Upto 4080 Iph
• Liquid : Clear cold water



Material of Construction:

• Impeller : Noryl
• Motor Body : Extruded Aluminum / Die Cast Body
• Delivery Casing, Adapter : Cast Iron
• Mechanical Seal : Ceramic / Carbon
• Shaft : Stainless Steel



Applications:

• Residential Bungalows
• Apartments
• Small Irrigation
• Small Hotels
• Lawns & Gardens
• Car Washing
• Fountains
• Pressure Boosting

  Performance chart for SSW Series at 220 Volt, 1PH, 50 Hz AC Supply

Model	KW	HP	Size in mm	Head in Mtrs
						9	12	15	18	21	24	27	30
				Discharge in LPM
SSW0.5	0.37	0.5	25x25	68	67	66	65	64	63	47	37	25	14
SSW1.0	0.75	1.0	25x25	68	67	66	65	64	64	58	50	38	35
